10000 Máy đóng chai Monoblock

Electric Juice Filling Line Fully Automatic Monoblock Bottling Machine

Quick Detail:

• Filling Head: 32 PCS

• Capping Head: 12 PCS

• Machine Type: Rotary Filling Machine

• Engineers available to service machinery overseas

• Full line including: Water Treatment System, Fruit Pretreat, and Juice packing from Rinser-Filler-Capper 3 in 1 machine Rotary, Lamp Checker, Cooling Machine, Labeling Machine, Film Shrink Machine/Carton Packing Machine

• Application: Apple/Orange/Grapefruit juice, pulp juice, tea/Beverage

• Cap Type: Screw cap, Pressing Cap, Sport cap

• Bottle Type: PET/PP/PE/HDPE Plastic Bottle/Glass bottle

• Bottle Shape: Round/Square/Rectangular/Irregular

• We supply 2,000 to 24,000 bottles/hour

• Capacity: 10,000 bottles per hour (500ml)

• Bottle Type:200ml to 2.5L

• Washing Head: 32 PCS

Specifications:

Description:

Hot filling machine is the standard 3-in-1 monoblock for rinsing, pulp juice filling and capping, when for special production condition, another pulp filling could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics( such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.

1, The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.

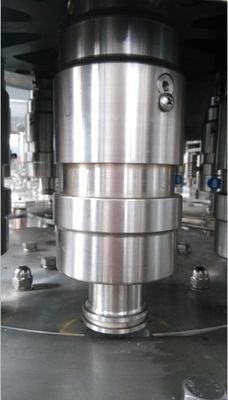

2, Sanitary filling head system is of umbrella structure, high filling speed.
3, Return tank system has the function of supplying the material automatically.
4, Perfect CIP system

5, Perfect filling temperature control system.

6, Full filling is to avoid bottles from sinking after the bottles cooling off, and to decrease dissolved oxygen to the utmost extent.
7, Reasonable structured storage hopper and material supply system keep material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.

Competitive Advantage:

1. Easy to operate and maintain.

2. PLC and transducers and other main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.

3. The equipment is highly mature, boasting fast and accurate spare parts services.

4. Fully automatic rinsing, filling and capping by PLC control;

5. No bottle no rinse;

6. With high filling speed and exact liquid level.

7. All product contact parts are made of qualified stainless steel, which wearable, stable with less malfunction.
